DUAL-BATH SERIES · MODEL KBN

KBN–2

Turn Table Parts Washer with Rinsing Feature

Parts are washed by alkali chemical pulverized through nozzles as the drum rotates — then dried after the wash, all with a dual-bath rinsing feature.

  • 3 Models
  • AISI 304L Stainless
  • 85°C
  • Dual Bath
  • CE
Teklif Alın Teknik Özellikler

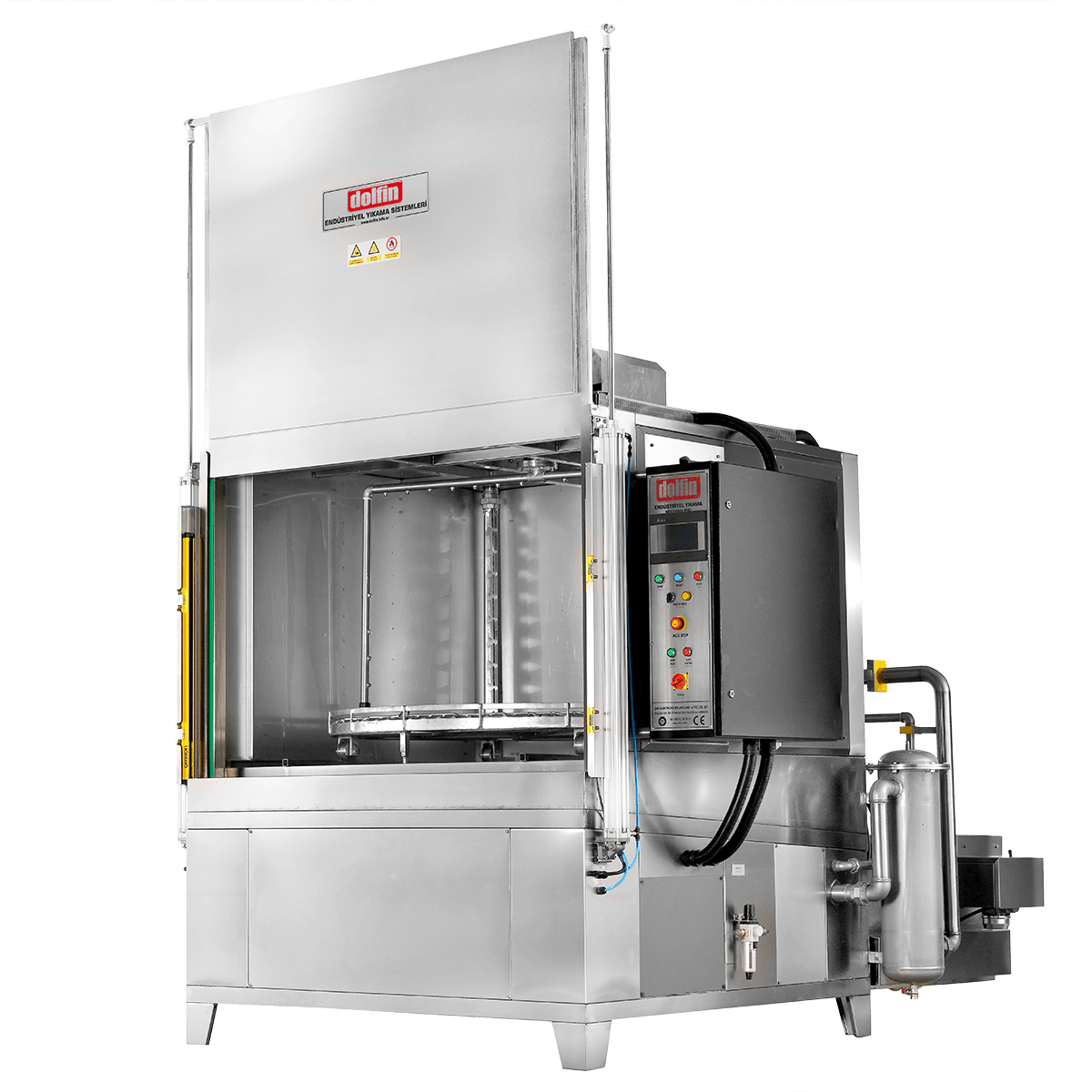

Dolfin KBN-2 turn table parts washing machine
3Model Options
⌀1900mmBasket Diameter
1250kgLoading Capacity
85°CWashing Temperature
2Wash + Rinse Baths

WORKING PRINCIPLE

Rotating drum,
washed and rinsed.

Parts are poured into a horizontally bedded scroll through the inlet port and, while moving through the spiral toward the outlet, are washed by alkali chemical pulverized via nozzles.

  1. 01

    Inlet Loading

    Parts are poured into the horizontally bedded scroll through the inlet port.

  2. 02

    Spiral Transport

    Parts move through the spiral toward the outlet, rolling up and down inside the drum.

  3. 03

    Alkali Spray Wash

    Alkali chemical is pulverized via nozzles; as the drum rotates, every piece is washed.

  4. 04

    Drying

    Parts are dried after the wash for degreasing, deburring and cleaning.

dolfin · PARTS WASHING SYSTEMS Dolfin KBN-2 control panel detail

CONTROL PANEL

Every function,
at your fingertips.

PLC controlled with a touch-screen control board, prescription feature and full protection.

  • Emergency StopAcil Stop
  • WashingPLC Controlled
  • TimerZaman
  • Tank LevelProtection
  • Main PowerEnerji

TECHNICAL SPECIFICATIONS

Three models,
one standard.

ALL VALUES · ⌀ BASKET · V-Hz · °C

DESCRIPTION UNIT KBN-2 1650 KBN-2 1850 KBN-2 2050
Basket Diameter mm 1500 1700 1900
Max. Part Height mm 850 850 850
Max. Loading Weight kg 1000 1250 1250
Tank Capacity (Tank 1) lt 350 350 350
Tank Capacity (Tank 2) lt 350 350 350
Cleaning Time min 0-60 0-60 0-60
Cleaning Temperature °C 85 85 85
Pump Power (Tank 1) kW 2,2 3 4
Pump Power (Tank 2) kW 2,2 3 4
Voltage V-Hz 380-50 380-50 380-50
Heating Power (Tank 1) kW 16 16 16
Heating Power (Tank 2) kW 16 16 16
Heating Power (Drying) kW 6,3 6,3 6,3
Total Power kW 44 46 48
E-Catalogue Machine Layout

FEATURES

Standard equipment,
optional upgrades.

STANDARD Standard Features

  • AISI-304 Stainless Steel Main Body
  • AISI-304K Stainless Steel Tank
  • AISI-304 Stainless Steel Electro-Pump
  • Electrical Resistance Heater
  • Mechanically Driven Washer Basket
  • PLC Controlled
  • Touch Screen Control Board
  • Prescription Feature
  • Basket Positioner
  • Temperature Controller
  • Timer

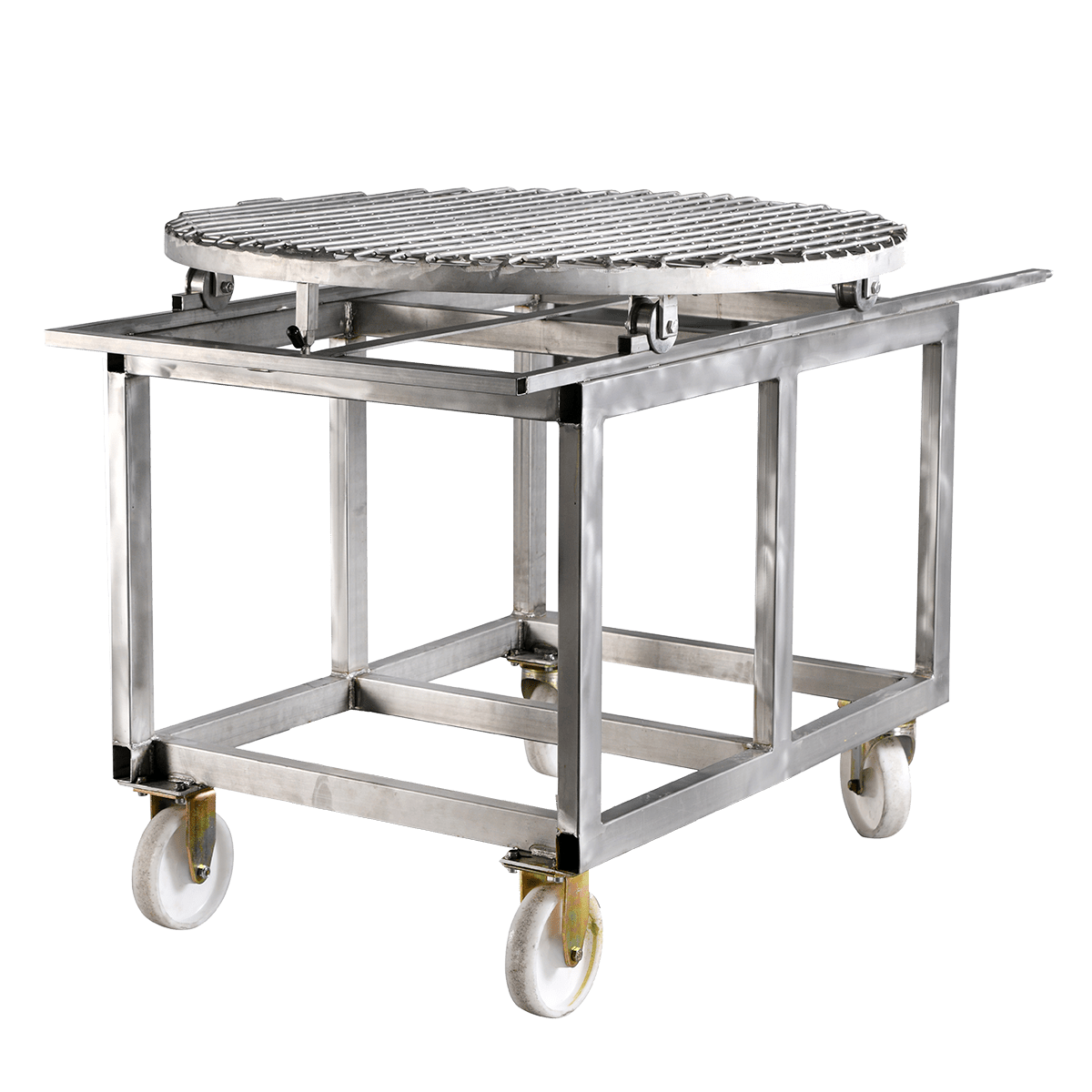

  • Trolley
  • Tank Level Protection

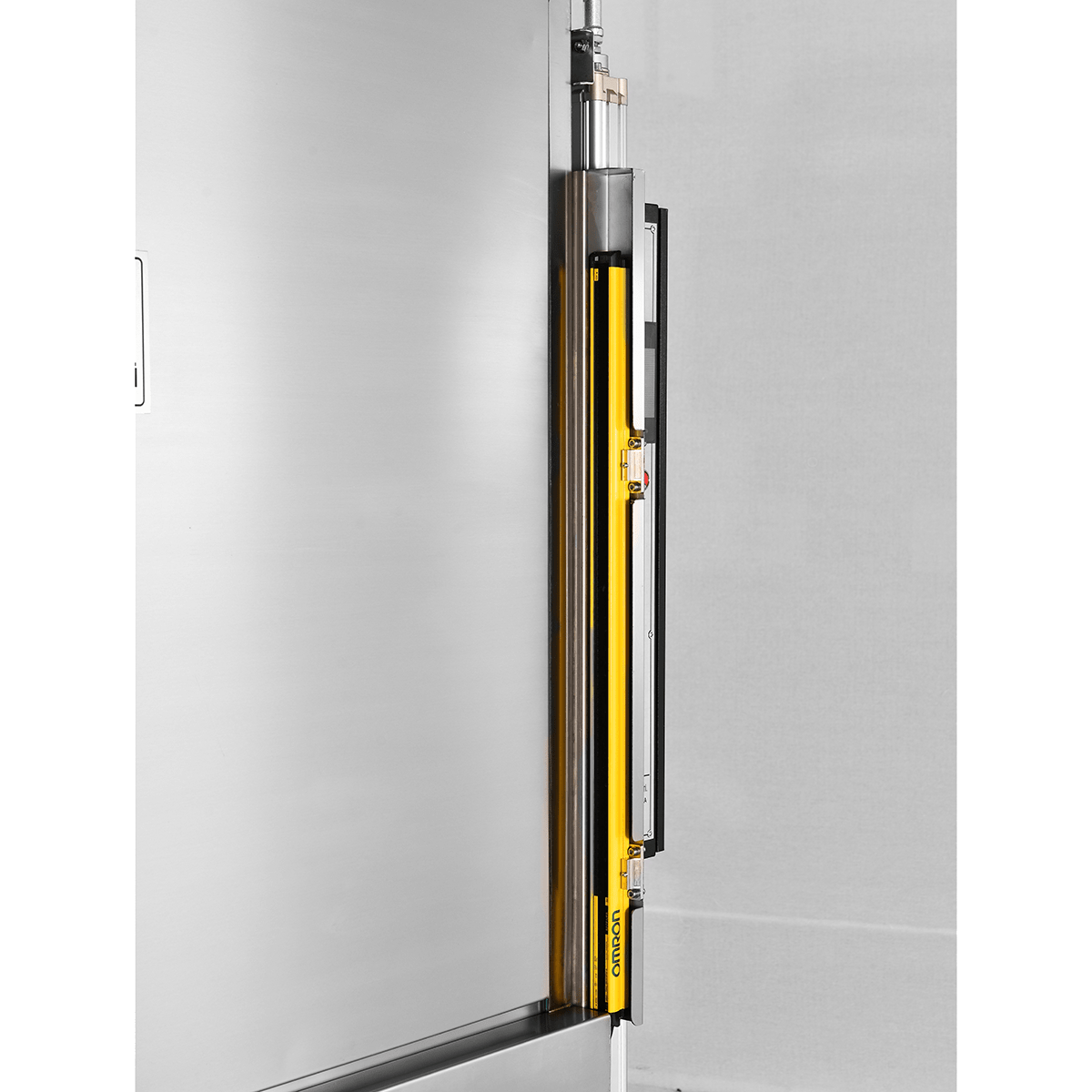

  • Infrared Hand Protection
  • Dual Filtration
  • Cover with Pneumatic Piston

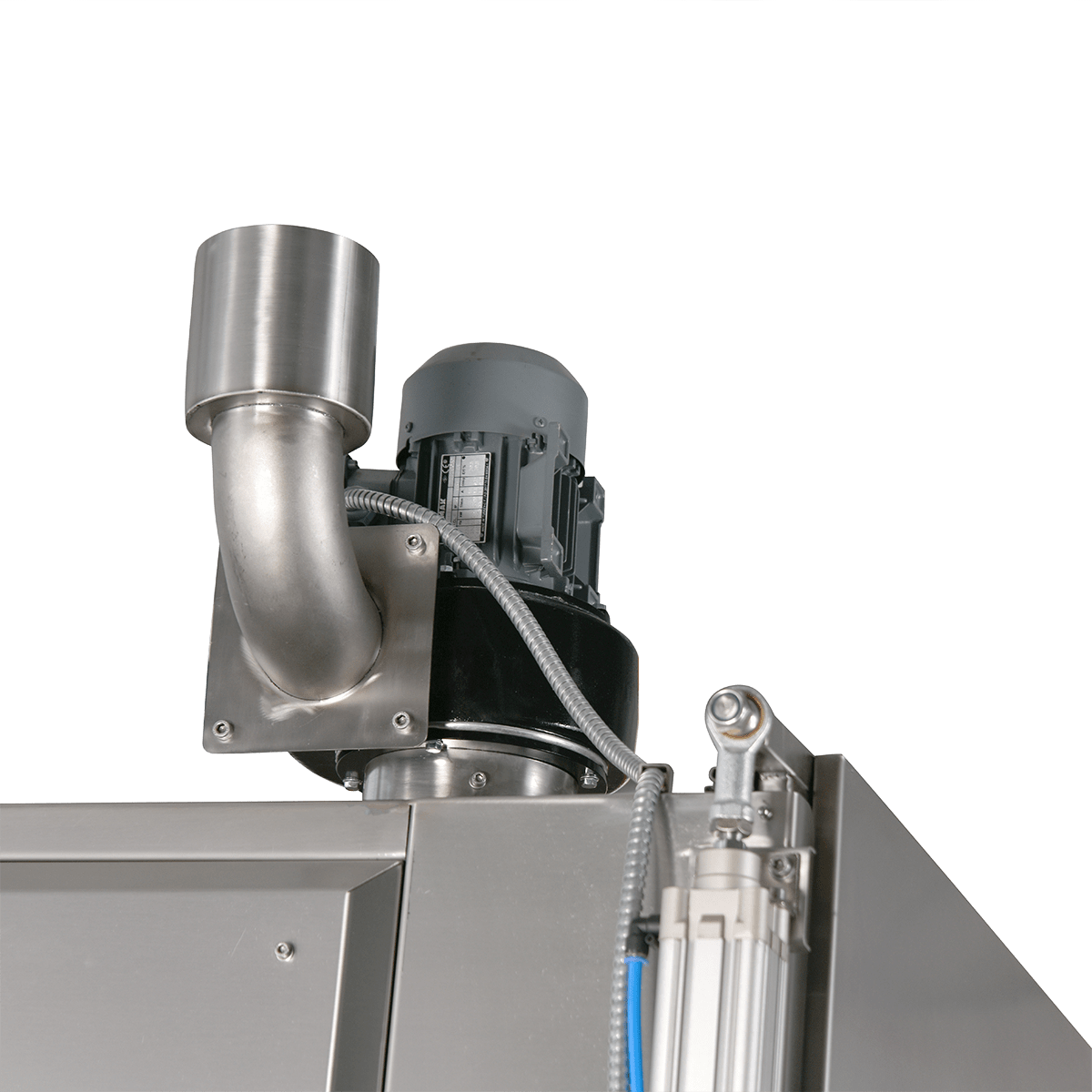

  • Steam Relief Fan
  • Emergency Stop Button

OPTIONAL Optional Features

  • Oil Scraper (Disc Type)
  • Automatic Tank Discharge Unit
  • Precise Filtration
  • Automatic Tank Filling
  • Vapour Exhaust Unit
  • Cascade System Between Warehouses

THE DOLFIN ADVANTAGE

  • Our After-Sales Service
  • Full Compliance to CE Standards
  • AISI 304 L / 1.4301 Stainless Steel Main Body
  • AISI 304 L / 1.4301 Stainless Steel Pump
  • AISI 304 L / 1.4301 Stainless Steel Tank
  • Dual Filtration & Precise Filtration
  • Secure Full Protection
  • Wide-Range Functionality

UTILIZATION FIELDS

Oil, burr and
contaminants, targeted.

These devices clean oil, burr and contaminants from surfaces, prepare surfaces before painting, remove stains on metal, perform phosphate processes and clean surfaces before welding.

  • Automotive Spare Parts
  • Machine & Part Manufacturers
  • Medical Parts & Devices
  • Automobile Repair & Maintenance
  • Work Machine Services
  • Bus Maintenance
  • Truck & Heavy Vehicle Services
  • Motor Revision & Rectification
  • Industrial Factory Maintenance
  • Military Maintenance
  • Public Maintenance
