ROTARY TABLE SENSITIVE SERIES · MODEL RTS

RTS

Rotary Table Sensitive Washing Machines

Mass production parts are washed, rinsed and dried before assembly and packing. The door locks automatically and every operation is handled inside the drum, employing both spray and soak cleaning for maximum cleanliness.

  • 2 Models
  • AISI 304L Stainless Steel
  • 85°C
  • CE
Teklif Alın Teknik Özellikler

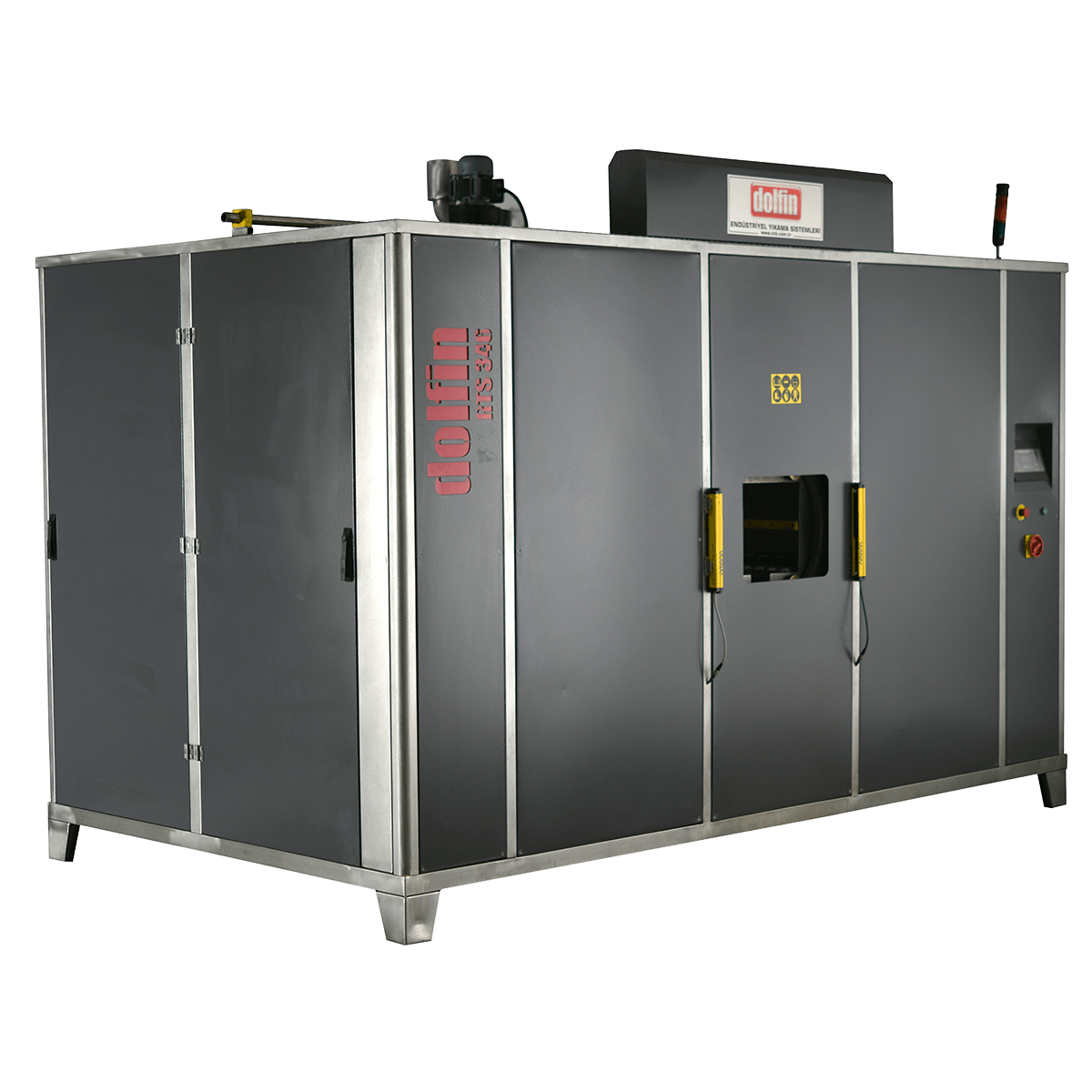

Dolfin RTS Series rotary table sensitive washing machine
2Model Options
85°CCleaning Temperature
500ltTank Capacity
50kgMax Loading Weight
500lt/minPump Flow Volume

WORKING PRINCIPLES

Wash, rinse and dry,
inside a sealed drum.

This machine allows us to wash, rinse and dry mass production parts before assembly and packing. Optionally, ultrasonic units can be attached to increase the washing quality.

  1. 01

    Loading

    Parts in the baskets moving on the conveyor are fed into the machine manually or pneumatically.

  2. 02

    Sealed Drum

    The door locks automatically and the wash, rinse and dry operations are handled inside the drum.

  3. 03

    Spray + Soak

    Both spray and soak cleaning are employed, improving cleanliness at the maximum level.

  4. 04

    Drying

    Hot air or vacuum drying is applied to finish the cycle.

TECHNICAL SPECIFICATIONS

Two models,
one standard.

ALL VALUES · BASKET mm · V-Hz · °C

DESCRIPTION UNIT RTS 235-2B RTS 346-2B
Basket Size mm 300*500*200 651*471*H300
Max. Loading Weight kg 40 50
Tank Capacity (Washing) lt 400 500
Tank Capacity (Rinsing) lt 400 500
Voltage V-Hz 380-50 380-50
Pump Power (Washing) kW 3 4
Pump Power (Rinsing) kW 3 4
Dryer Fan Type Blower Lower
Pump Flow Volume lt/min 400 500
Cleaning Temperature °C 85 85
E-Catalog Layout Plan

FEATURES

Standard equipment,
optional upgrades.

STANDARD Standard Features

  • AISI-304 Stainless Steel Main Body
  • AISI 304 K Stainless Steel Tank
  • AISI-304 K Stainless Steel Electro-Pump
  • Electrical Resistance Heater
  • PLC Control Unit
  • Touch Screen Control Board
  • Tank Level Protection
  • Dual Filtration
  • Automatic Washing Cycle
  • Emergency Stop Button
  • Drier
  • Adjustable Drum Speed
  • Oil Scraper (Disc Type)
  • Steam Relief Unit
  • Tank Heat Insulation

OPTIONAL Optional Features

  • Automatic Tank Discharge Unit
  • Automatic Part Loading
  • Acidic Washing Application
  • Automatic Tank Filling
  • Precise Filtration
  • Manual Loading Table
  • Vacuum Drying
  • Ultrasonic Washing Unit
  • Oil Separator Unit

FEATURES THAT DISTINGUISH DOLFIN

  • Our After-Sales Service
  • Full Compliance to CE Standards
  • AISI 304 L / 1.4301 Stainless Steel Main Body
  • AISI 304 L / 1.4301 Stainless Steel Pump
  • AISI 304 L / 1.4301 Stainless Steel Tank
  • Drum Construction
  • Dual Filtration & Precise Filtration
  • Secure Full Protection
  • Wide-Range Functionality

UTILIZATION FIELDS

Cleaning oil, burr
and surface contaminants.

These devices are used for parts, cleaning oil, burr and contaminants on the surfaces. Some of the industries where RTS Series parts washing machines are used are as follows.

  • Automotive Spare Parts Production Factories
  • Aircraft Part Manufacturers
  • Machine and Part Manufacturers
  • Medical Parts and Device Manufacturers
  • Automobile Repair and Maintenance Services
  • Weapon Manufacturers
