TURN TABLE SERIES · MODEL LYM
LYM–1

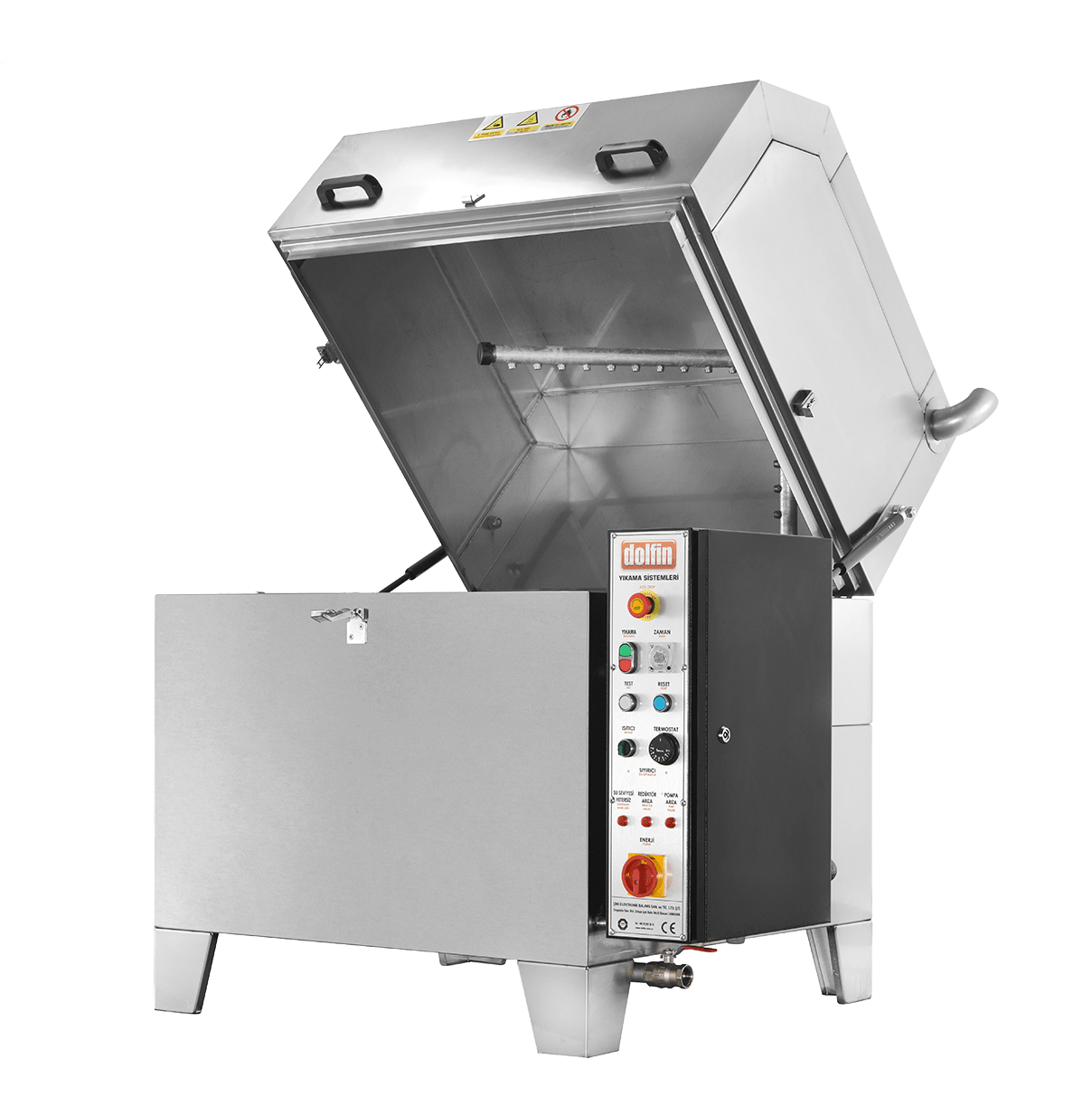

Top Loading Turn Table Parts Washers
Washing is done in a completely isolated cabinet without manual operation. Alkali chemistry water is pumped through specially placed nozzles onto every part from up, down and the sides.
- 2 Models
- AISI 304L Stainless
- 90°C
- CE
GALLERY
Engineering from every angle.

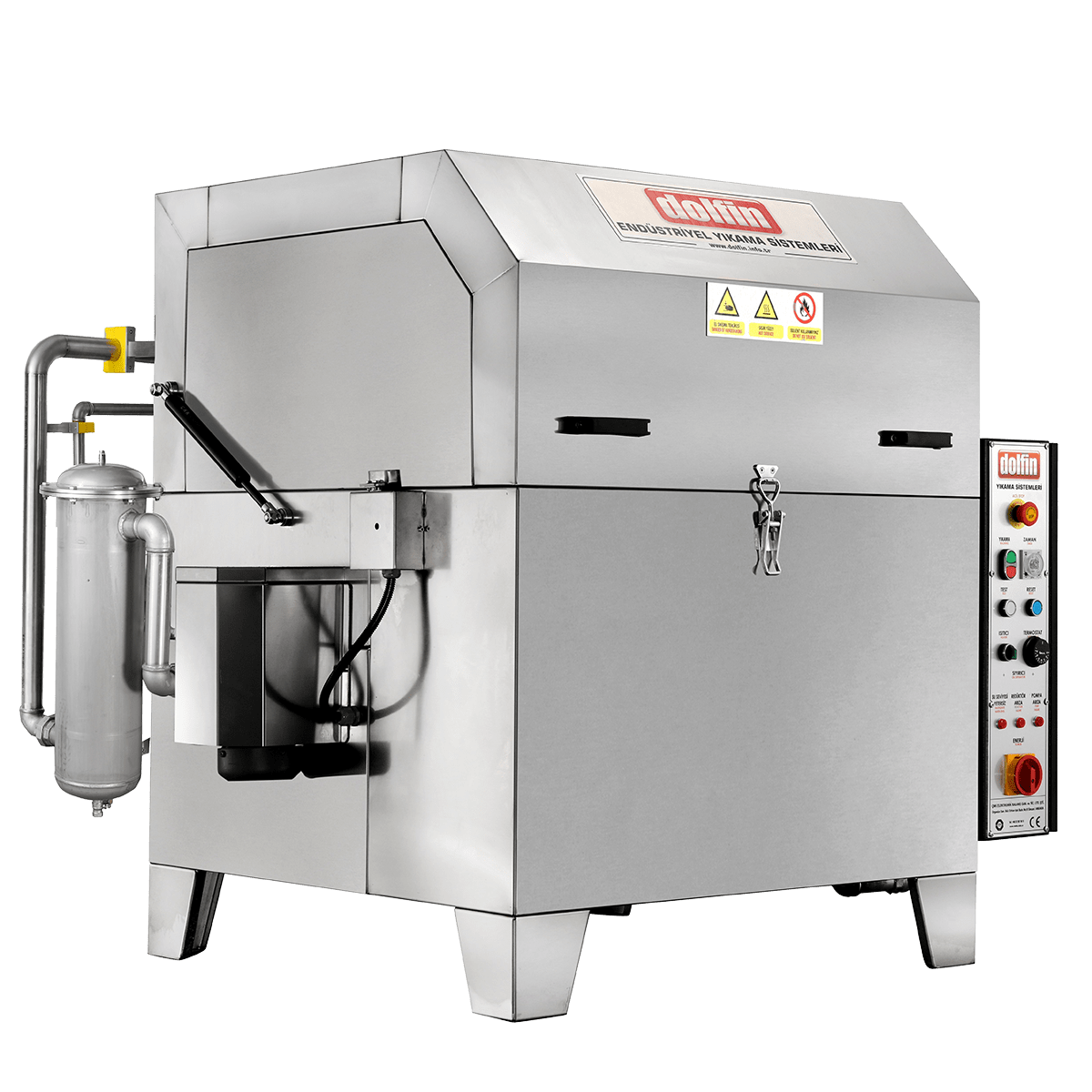

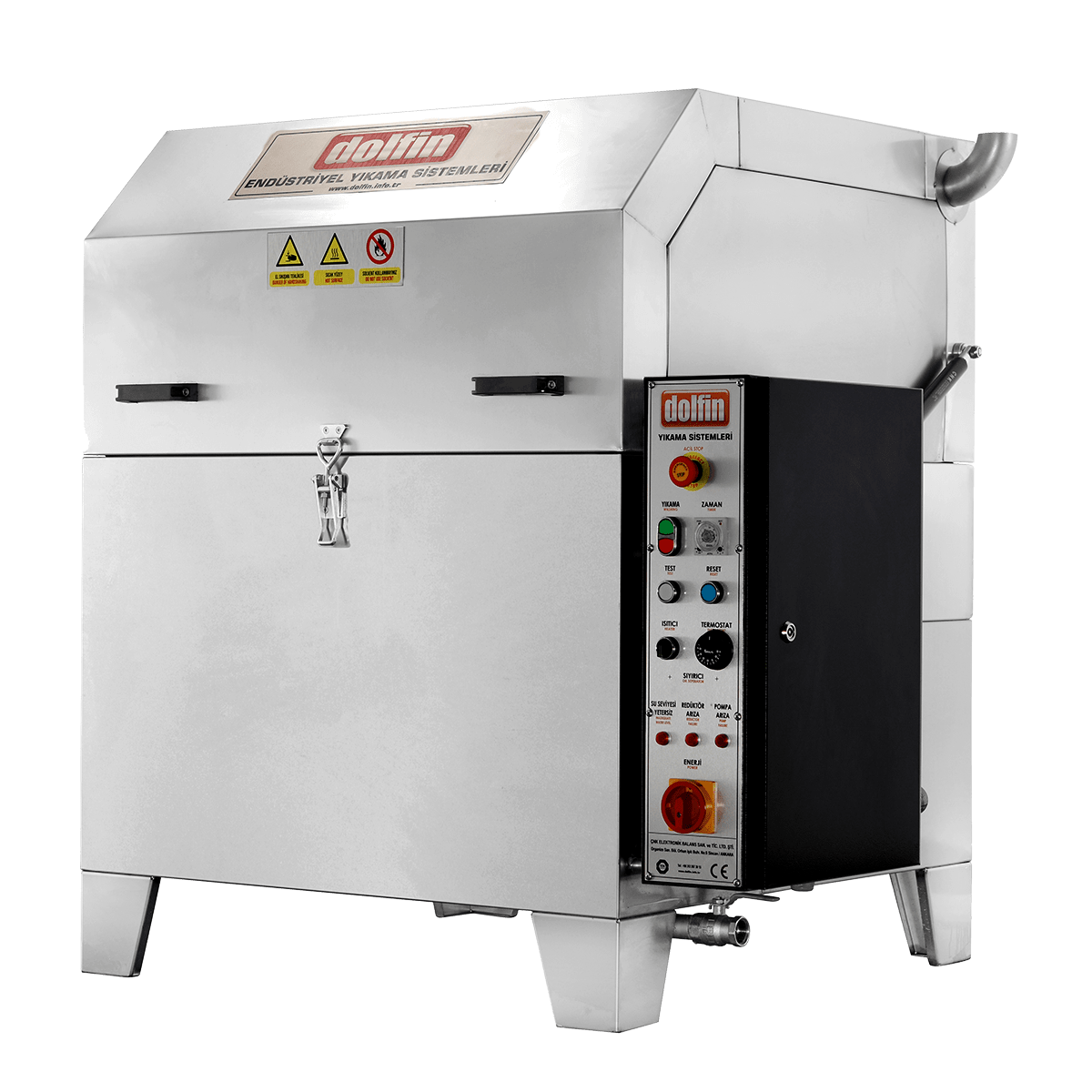

GENERAL VIEW
WORKING PRINCIPLE
Isolated cabinet,
hands-free cleaning.
During the wash, 2–5% concentration alkali chemistry water penetrates all parts of the dirty piece through specifically placed nozzles, driven from the tank by an electro stainless steel body pump.
-
01
Isolated Cabinet
Washing runs automatically inside a completely isolated cabinet, without manual operation.
-
02
Stainless Pump
An electro stainless steel body pump drives alkali chemistry water from the tank under pressure.
-
03
Placed Nozzles
Specifically placed nozzles reach every surface of the part from up, down and the sides.
-
04

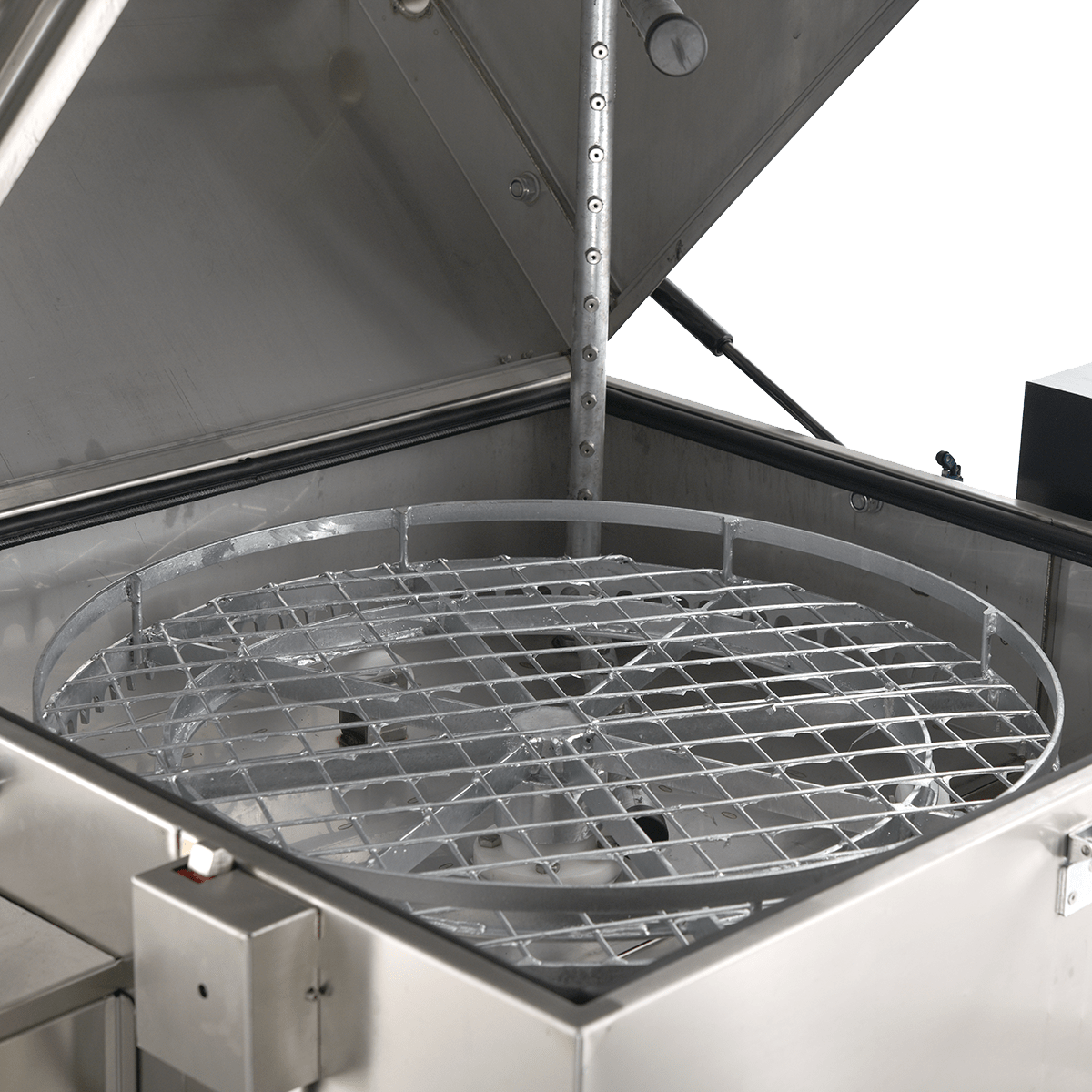

Rotating Basket
The basket rotates around itself to improve the washing effect across the whole load.

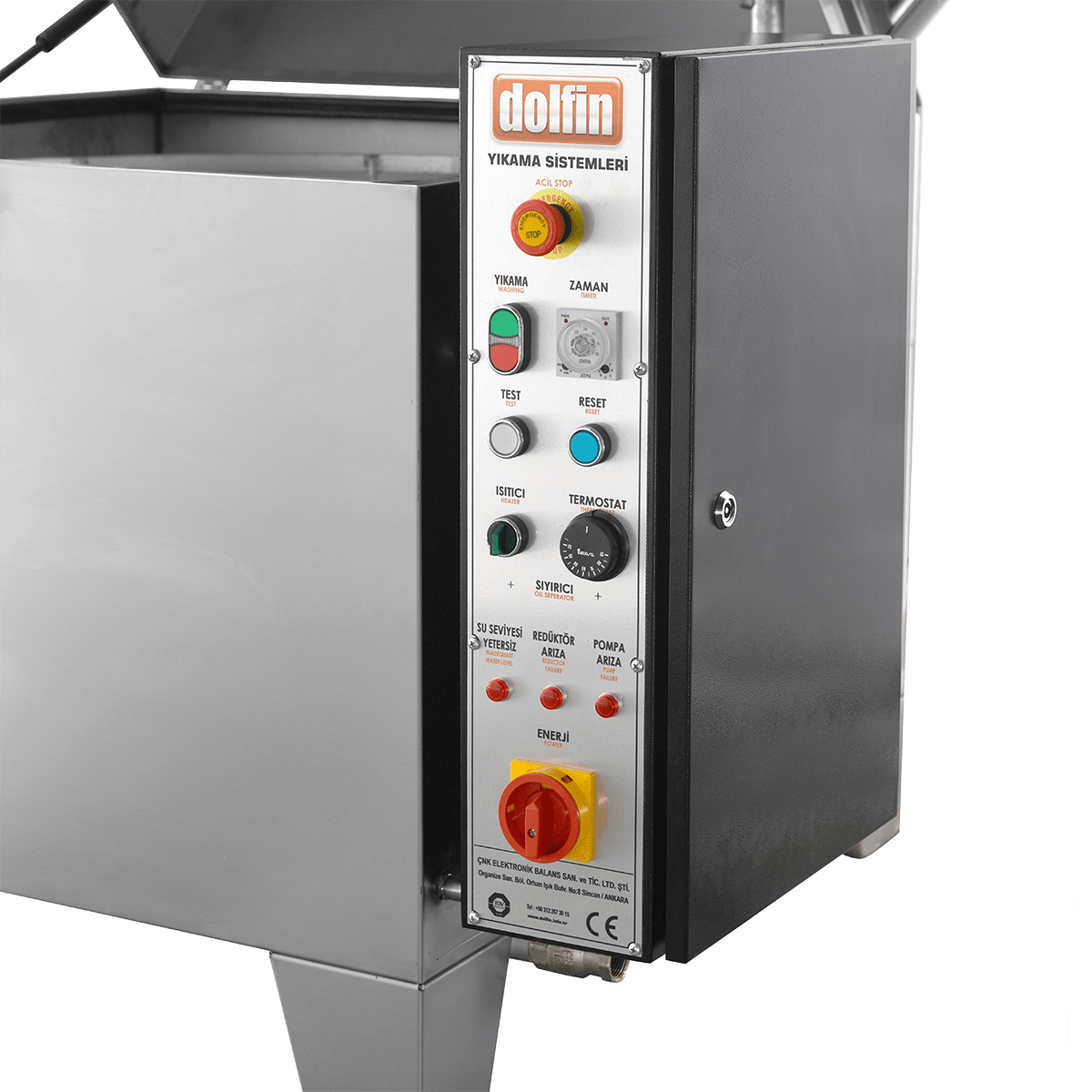

CONTROL BOARD
Every function,
at your fingertips.
Electric board with failure alarm and full protection against electric shock.
- Emergency StopStop Button
- WashingWash Cycle
- TimerTimer
- Failure AlarmFault
- Main PowerEnergy
TECHNICAL SPECIFICATIONS
Two models,
one standard.
ALL VALUES · ⌀ BASKET · V-Hz · °C
| DESCRIPTION | UNIT | LYM 950 | LYM 1150 |
|---|---|---|---|
| Diameter of Basket | mm | 800 | 1000 |
| Max. Part Height | mm | 500 | 550 |
| Max. Workload | kg | 200 | 400 |
| Tank Capacity | L | 100 | 150 |
| Pump Power | kW | 1,1 | 1,5 |
| Number of Washer | psc. | 1 | 2 |
| Voltage | V-Hz | 380-50 | 380-50 |
| Cleaning Temperature | °C | 85 | 85 |
| Total Power | kW | 9,5 | 10 |
| Trolley | kW | – | – |
FEATURES
Standard &
optional equipment.
STANDARD Standard Features
- Certification in Compliance With CE Standards
- AISI 304 L / 1.4301 Stainless Steel Main Body
- AISI 304 L / 1.4301 Stainless Steel Tank
- AISI 304 L / 1.4301 Stainless Steel Pump
- Board w/ Failure Alarm
- Strengthened Washer Basket

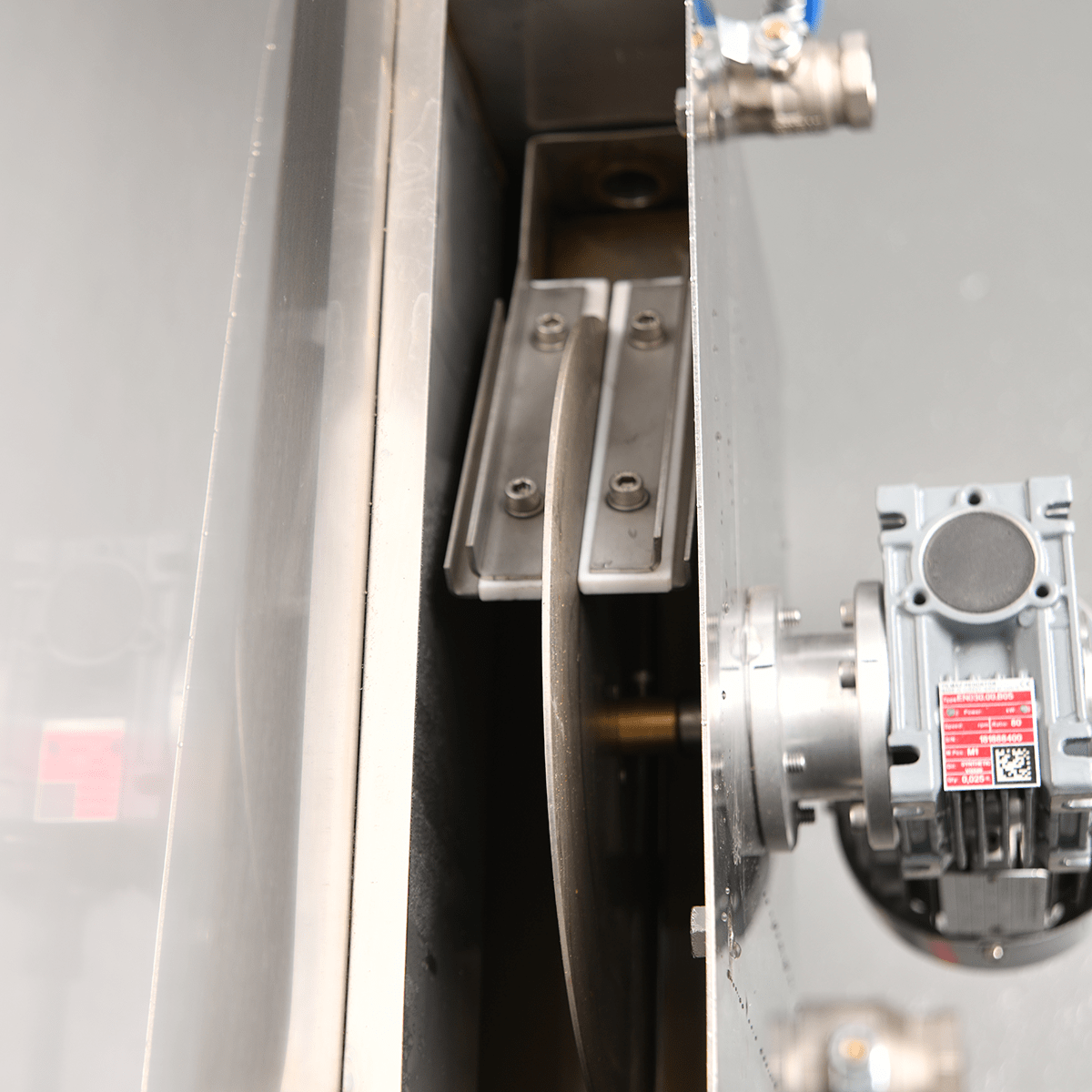

- Side Driven Washer Basket
- Stainless Steel Removable Nozzle
- Dual Filtration System
- Stainless Steel in Pump Suction
- Resistance with Steel Heater
- Water Level Protection
- Heat Protection
- Timer
- Full Protection Against Electric Shock
- Emergency Stop Button & Small Parts Basket
- Operating Temperature up to 90 Degrees
- Highly Resistant Special Gasket on Pump
- Stripeless Cover Construction
- Cover with Damper
- Cover with Mechanical Lock
- Design with Easy-Maintenance
OPTIONAL Optional Features
- AISI 304 Stainless Steel Washer Basket
- Steam Relief Unit
- Electronic Interlock
- Disc Type Oil Scraper
- Digital Indicator
- Precise Filtration
- Drying Unit
- Body Heat Insulation
THE DOLFIN ADVANTAGE
- Our After-Sales Service
- Full Compliance to CE Standards
- AISI 304 L / 1.4301 Stainless Steel Main Body
- AISI 304 L / 1.4301 Stainless Steel Pump
- Secure Full Protection
- Electric Board w/ Failure Alarm
UTILIZATION FIELDS
Oil, burr and stains
on every surface.
These devices clean oil, burr and contaminants on part surfaces, remove stains on metal, and prepare surfaces before welding.
- Automotive Spare Parts
- Machine & Part Manufacturing
- Medical Parts & Devices
- Automobile Repair & Maintenance
- Motor Revision & Rectification
- Hand Tools Maintenance
- Industrial Factory Maintenance
- Military Maintenance
- Public Maintenance Services
- Technical Training Institutes
